One Vehicle Infinite Possibilities
Max. Power
7.0kW(9.4hp)/8000rpm
Max. Torque
9.7N.m/5500rpm
Max. Speed
90km/h

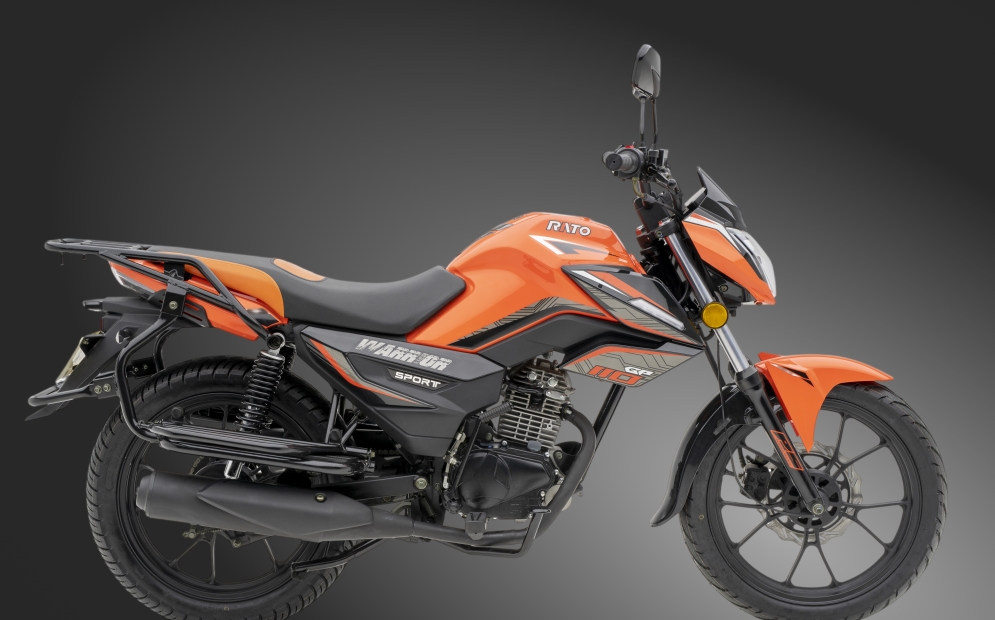

Sport Design
Diving mecha front face, stretched body waistline, creating a visually muscular effect

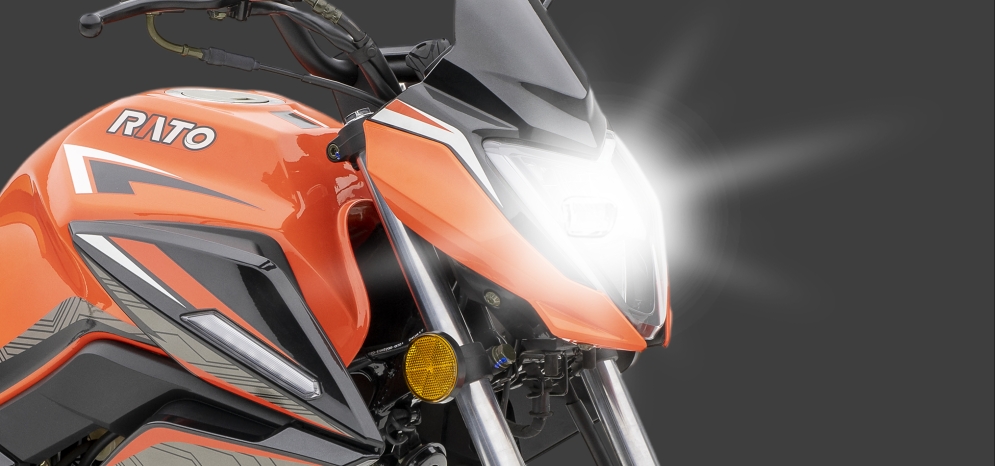

Polygonal eagle eye headlights, paired with layered contrasting color deflectors, form a highly aggressive familial front face

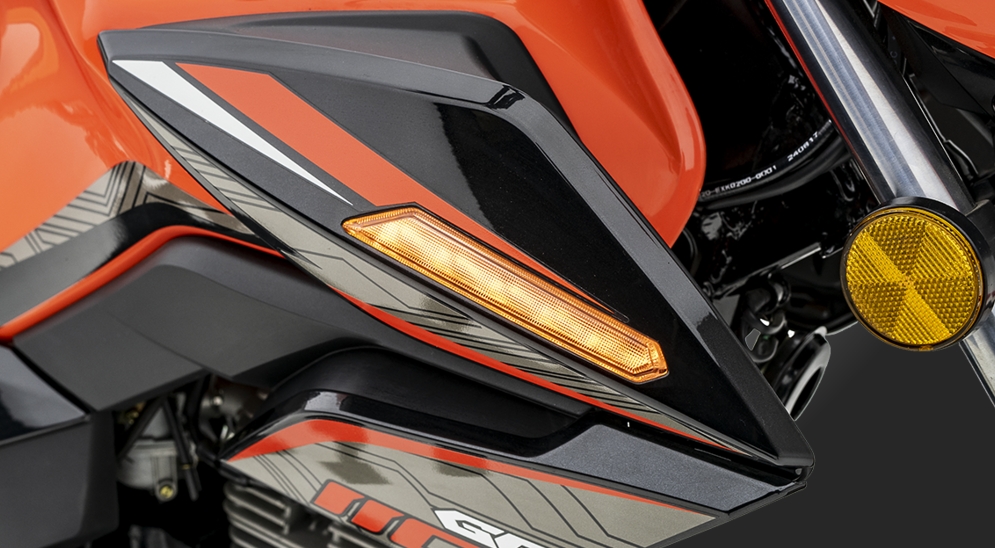

The embedded integrated design of the turn signals on both sides is perfectly integrated with the front face guard

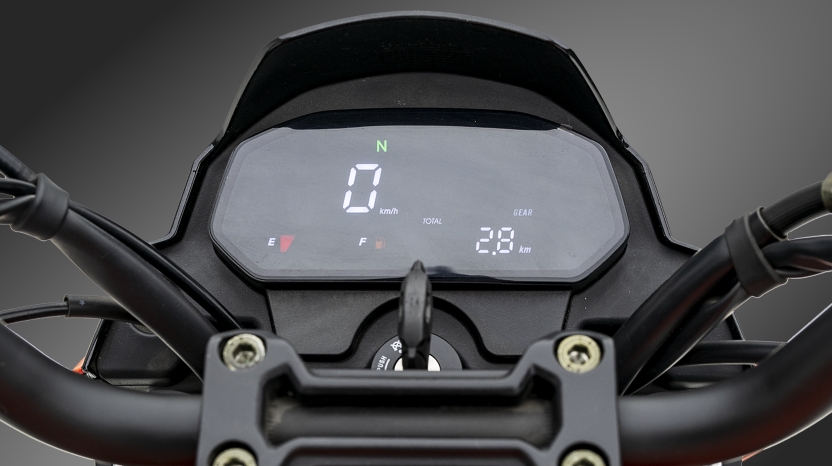

Full color LED square instrument panel, clear and atmospheric
Core Configurations
Equipped with a self-developed 110cc single cylinder air-cooled four stroke engine, the power tuning is stable and smooth, meeting the needs of daily use in all scenarios
Equipped with a 17L sports fuel tank, there is no range anxiety
Front suspension hydraulic fork, rear suspension long stroke spring shock absorber, balancing commuting comfort and load support
Standard high-strength cargo package, integrated thickened rear shelf, optional double-sided large flap shelf
Front disc and rear drum, strong braking force, suitable for all commuting scenarios
WARRIOR 11O Parameters
| Engine Name | RKV110 |
| Displacement(ml) | 113.4 |
| Max.Power (kW/rpm) | 7.0(9.4hp)/8000 |
| Max. Torque (N.m/rpm) | 9.7/5500 |
| Max. Speed (km/h) | 90 |
| BorexStroke(mm) | 54.0x49.5 |
| Compression Ratio | 9.4:1 |
| lgnition Mode | CDI |
| Fuel Tank Capacity (L) | 17 |
| Gear | 4-Speed Gearshift |
| Transmission Mode | Chain Drive |
| Start Mode | Electric/Kick |
| Front Tires | 80/90-17 |
| Rear Tires | 100/90-17 |
| Front Brake | Disc Brake |
| Rear Brake | Drum Brake |
| Dry Weight (kg) | 103 |
| Fuel Consumption(L/100km) | 2 |
| Min.Ground Clearance(mm) | 180 |
| Product Dimensions(mm) | 1935x750x1030 |
| Seat Hight(mm) | 780 |
| Wheelbase(mm) | 1280 |
| Loading Capacity(kg) | 150 |
| Climbing Ability(°) | 25° |
| Min.Turning Radius(mm) | 1890 |
